Spiral Poultry Pre Chiller Machine For Chicken Slaughter Plant 500 - 10000Bph

Spiral Pre Chiller Machine For Poultry Processing Plant Poultry Chicken Slaughter Plant

Complete Chicken Slaughter line for Different Capacity Slaughterhouse

Whole process including:

Flow Chart:

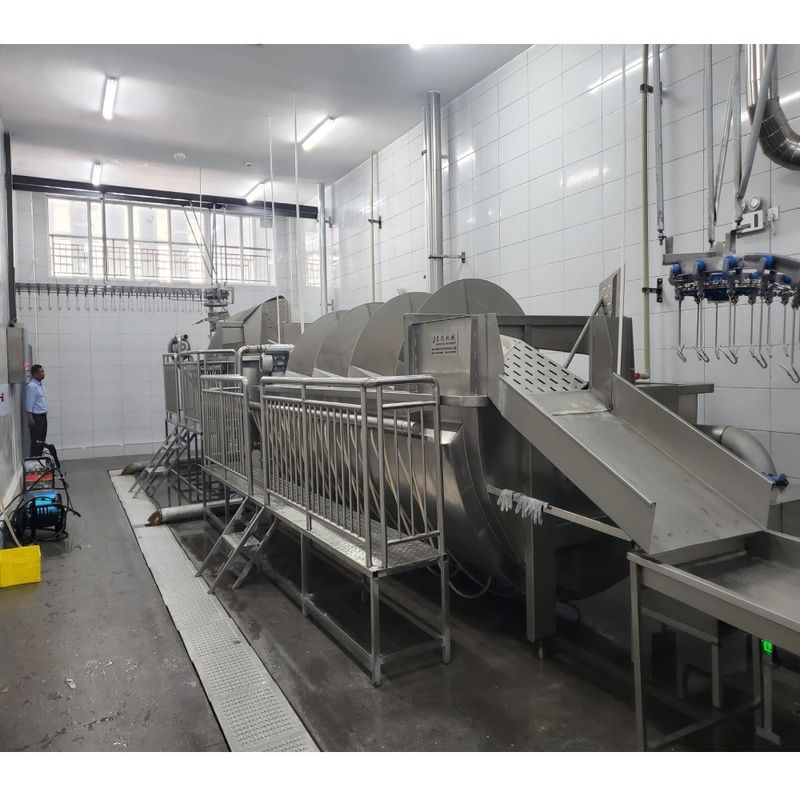

Main machine- Screw chiller:

• Brief introduction:

Screw chiller is one of the most important machines on the slaughter line. It is used to cool the carcass after evisceration. It is working with ice or cold water to make the carcass cool. Stainless steel made machine body, with mixing system. Stable working and low breakdown rate.

• Specification:

-Time of pre-cooling: 30~45min or as customers’ requirements

-Stainless steel made screw blade with diameter of 1600mm 190mm or 2100mm

-Stainless steel tumble of propellor with diameter of 320mm, and thickness of 3mm

-Stainless steel reinforcement rib and end cover with thickness of 10mm

-Stainless steel made machine body

-Pushing motor with power of 0.55kw/0.75kw

-Power of the motor for the reducer for pushing out chicken 0.55kw/0.75kw

-Whirlpool wind blower with power of 4kw/5.5kw

-Chilling medium: cold water or flake ice

-Chilling temperature: 0-4℃

​

Company Information:

NANJING CHANGXUN MACHINERY CO., LTD is professional first manufacturer of poultry slaughtering equipment in china established in 1975. It is located in Hengxi Industrial Park, Jiangning district, Nanjing City with beautiful scenery and convenient transportation. Nanjing Lukou International Airport is only thirty minutes away by car.

CHANGXUN MACHINERY is an enterprise specialized in researching, developing and producing series of full-set poultry slaughtering equipment. Furthermore CHANGXUN MACHINERY are able to provide all-rounded services including complete technical support, installation and testing, personnel training. All of CHANGXUN MACHINERY products are reach the National Health and Export Standards.

Many big poultry slaughtering lines have been built in China cooperated with international and domestic well-known groups like Meyn, Linco, Stork, CP, Nanjing Yurun, Shanxi Suhai, Tianjin Baodi, ShanDong CHINWHIZ and so on.

Slaughtering equipment have been exported to Russia, Canada, USA, New Zealand, France, Australia, Tunisia, UAE, Sudan, Lebanon, Oman, Qatar, Philippine, Uzbekistan, Ethiopia, Tanzania, Algeria, Nigeira Zambia India with more than 40 countries. CHANGXUN has obtained CE. SGS and TUV certificate.

CHANGXUN MACHINERY has been adhering to the principle of “honesty, quality first”. We will strengthen technology power and continue self breakthrough and development. Warmly welcome customers from all over the world.

FAQ:

1. What is the minimum order quantity?

-- 1 PC. slaughter machine or 1 complete slaughter line.

2. How to visit your factory?

-- Our factory is located in Nanjing. It is located 20 km from the airport and 35 km from the high-speed train station. We can take you from the station to the factory for a visit.

3. Can you visit a slaughterhouse in China?

-- Of course it can. We can arrange for you to visit our customers' slaughterhouses in China so that you can observe the operation of the machine up close.

4. Can engineers go overseas and provide installation services?

-- We provide service for installation and commissioning engineers overseas to ensure the machine works properly.

5. Have you previously provided or installed a poultry slaughter line abroad?

-- Yes. We have delivered slaughter lines to more than forty countries, including the Philippines, Malaysia, Nigeria, France, Kenya, Uzbekistan, Russia, Vietnam and Sri Lanka.
